Duplex Shaft Design
Improves rewinding efficiency and roll handling.
Consistent Slit Quality
Maintains accurate slit width across paper and films.
Multi-Material Use
Supports paper, films, foils, and laminates.
Duplex Center Shaft Slitting Solution

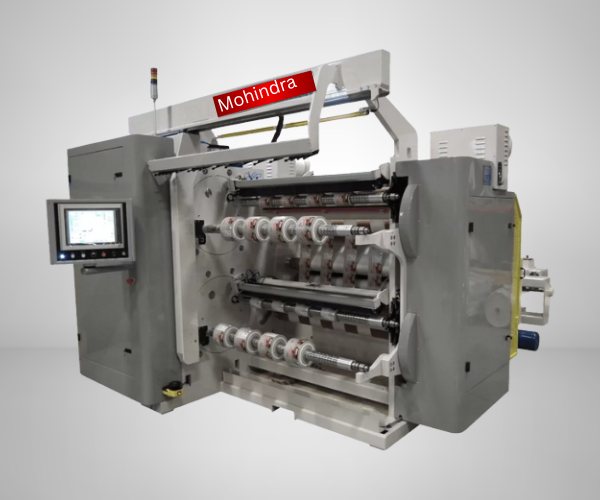

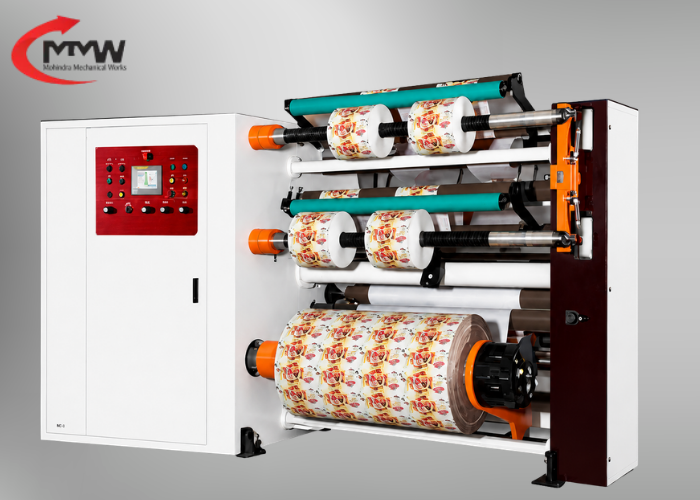

Duplex Shaft Slitting Machine
The Duplex Shaft Slitting Machine is designed for slitting paper, films, foils, and laminates from jumbo rolls into smaller widths. Its duplex center shaft construction supports smooth rewinding, stable tension control, and consistent output quality for packaging and converting operations. Optional features can be configured as per production requirements.
| Working Speed | 250 m/min |
|---|---|
| Type of Material | Paper (30 to 200 GSM) and films (50 to 250 mic) |
| Working Width | 40 inch / 1000 mm, also available in 36 inch and 48 inch |
| Minimum Slit | 1.25 inch / 30 mm |
| Max. Unwind Diameter | 40 inch / 1000 mm |
| Max. Winding Diameter | 30 inch / 760 mm |
| Core ID at Winding & Unwind | 3 inch / 76 mm paper core |
| Power Required | 16 HP, 440 V, 50 Hz |
| Floor Space | 9.5 ft x 9 ft for 40 inch / 1000 mm model |
| Optional | Shaftless unwind, reel floor lifting, air shaft at winding |
| Supply Type | Manufacturer, exporter, supplier, retailer |
| Preferred Buyer Location | All over the world |
| Minimum Order Quantity | 1 Unit |
