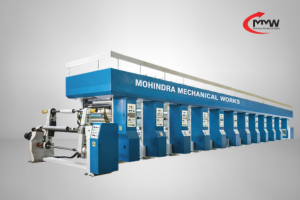

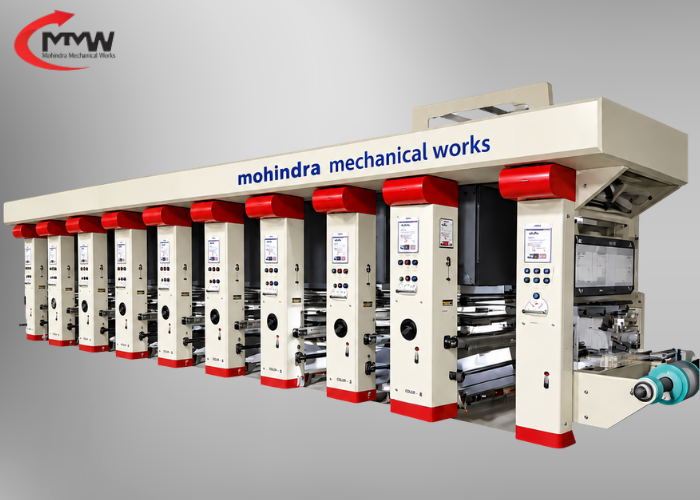

ELS Rotogravure Printing Machine
Product Details
ELS Rotogravure Printing Machine is engineered for high-speed, precision roll-to-roll printing in advanced flexible packaging applications. Powered by Electronic Line Shaft (ELS) technology with independent servo motors for each printing unit, it delivers accurate multi-color registration, smooth web handling, and superior repeat consistency. Designed for BOPP, PET, PVC, PE, nylon, metalized films, and paper substrates, it ensures stable performance, reduced setup time, energy efficiency, and reliable long-run production output.
| Drive System | Electronic Line Shaft (ELS) - Servo Based |
|---|---|
| Machine Type | ELS Rotogravure Printing Machine |
| Maximum Web Width | Up to 1320 mm |
| Minimum Web Width | 1050 mm |
| Print Repeat Range | 400 – 800 mm |
| Printing Cylinder Width | 1050 – 1370 mm |
| Maximum Printing Speed | Up to 250 m/min (Depending on Model) |
| Unwinder Roll Diameter | 800 / 1000 mm (Optional) |
| Unwinder Core Diameter | 76 / 152 mm |
| Unwind Direction | Two Directions |
| Unwind Tension Range | 4 – 40 kg |
| Rewinder Roll Diameter | 800 / 1000 mm (Optional) |
| Rewinder Core Diameter | 76 / 152 mm |
| Rewind Direction | Single Direction |
| Splicing System | Both Side (Unwind) / Bottom Side (Rewind) |
| Rider Roller | Common Pneumatic Rider Roller |
| Applications | BOPP, PET, PVC, PE, Nylon, Metalized Film, Paper |
