Industrial Rewinding Machine Solution

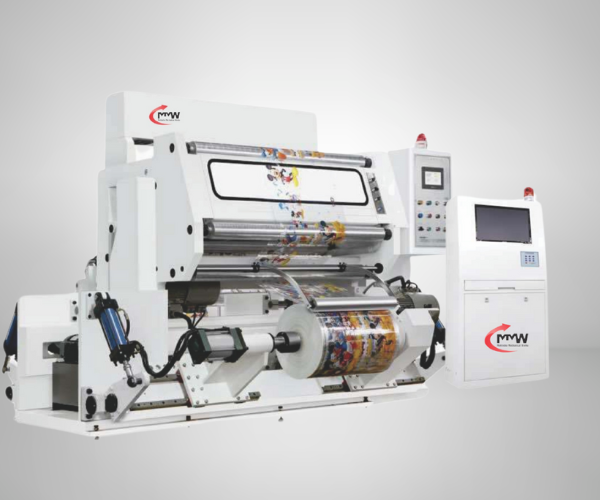

Inspection Machine
The Inspection Machine is designed for smooth rewinding, inspection, and web handling of films, foils, paper, and flexible packaging materials. It helps maintain roll quality, stable tension, and efficient production output.
| Machine Name | MOHINDRA High Speed Inspection Machine |
|---|---|
| Mechanical Speed | 450 Mtr./min. (Depends upon: Type, Roll condition, Tension range, operator skill etc...) |
| Unwinder | Unwind Stands, Shaft Less |
| Maximum Roll Diameter | 1000 mm |
| Inside Cone Diameter | 76/152 mm |
| Direction Unwinding | Two (2) Direction Unwinding |
| Rewinder-1 Maximum Roll Diameter | 1000 mm |
| Inside Core Diameter | 152 mm |
| Direction Rewinding | Two (2) Direction Rewinding |
| Direction Rewinding (Secondary) | One (1) Direction Rewinding |
| Web Guiding | Ultrasonic Edge guiding with A.C. motor actuator at both Unwinder and Rewinder |
| Lighting | Machine is equipped with one number of full width strobe light and a light box |
| Pasting Table | Pasting table arrangement to strip off defected material and then paste the new web. Separate Rewinder-2 is provided to rewinding the rejected laminates |
| Drive Motors | AC Vector grade Motor With Digital AC Vector drives — Unwinder, Main Motor, Rewinder-1, Rewinder-2 |
| Motor Type | 1 No. (AC Asynchronous motor), 1 No. (AC induction motor), 1 No. (AC Asynchronous motor), 1 No. (AC Induction Motor) |
| Hand of Line | To be determined (customer's choice) |
| Electric Supply Voltage | 415VAC±10%, 50 Hz ±1% 3ph |
