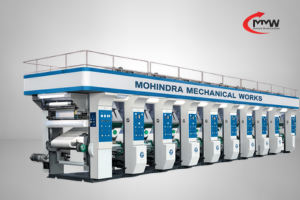

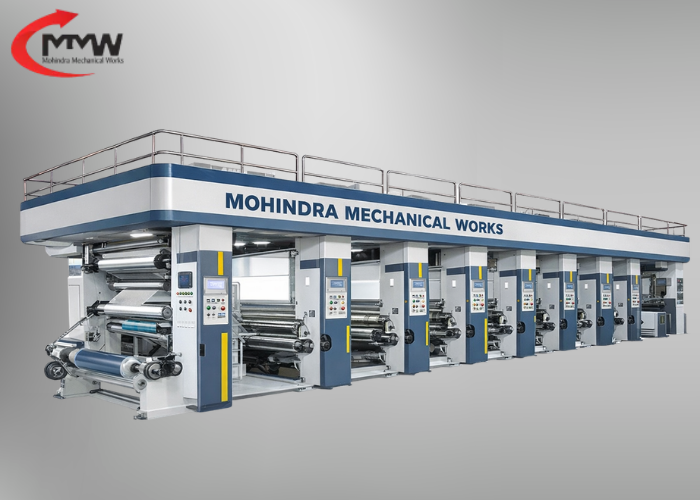

MLS Rotogravure Printing Machine
Product Details
MLS Rotogravure Printing Machine is engineered for high-speed roll-to-roll printing in flexible packaging applications. Built with a robust mechanical line shaft drive system, it ensures synchronized multi-color printing, stable web handling, and precise color-to-color registration even during long production runs. Its heavy-duty construction minimizes vibration and enhances operational stability. Compatible with BOPP, PET, PVC, PE, nylon, and paper substrates, it delivers consistent print quality, reduced wastage, industrial durability, and reliable long-term performance for demanding packaging environments.
| Drive System | Mechanical Line Shaft (MLS) |
|---|---|
| Number of Printing Stations | Multi Stations / As per Requirement |
| Printing Speed | 150+ Meter/Minute (Mechanical Speed) |
| Maximum Web Width | 820 / 1020 / 1320 mm |
| Printing Colors | 4 to 12 Colors (Customizable) |
| Unwinder Roll Diameter | 800 / 1000 mm (Optional) |
| Unwinder Core Diameter | 76 / 152 mm |
| Rewinder Roll Diameter | 800 / 1000 mm (Optional) |
| Rewinder Core Diameter | 152 mm |
| Substrate Range | BOPP, PET, PVC, PE, LDPE, Nylon, Paper, MET PET |
| Material Thickness - BOPP | 15–30 Microns |
| Material Thickness - Polyester | 8–23 Microns |
| Material Thickness - MET PET | 8–23 Microns |
| Material Thickness - LDPE | 50–80 Microns |
| Material Thickness - Paper | 40–80 GSM |
| Tension Control | Automatic Web Tension Control (Depends on Material) |
| Drying System | Multi-Zone Hot Air Drying System |
| Control System | PLC Based Control Panel |
