Industrial Flexo Printing Machine Solution

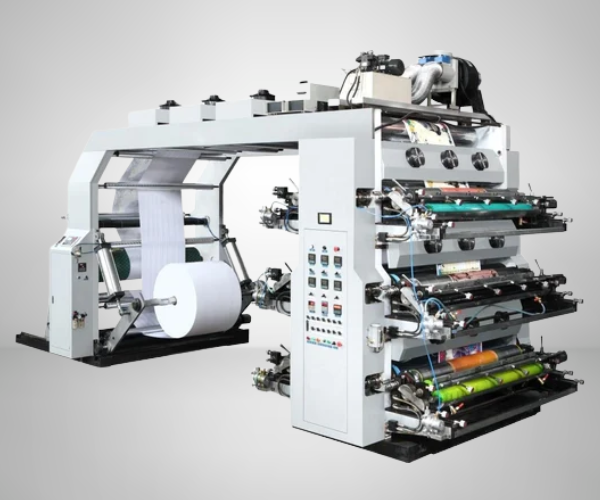

PP Bag Printing Machine
The PP Bag Printing Machine is designed for sharp, vibrant, and consistent flexographic printing on packaging materials. It supports smooth operation, reliable registration, and efficient production for paper, film, woven, and non-woven applications.
| Printing Speed | 5000 IPH |
|---|---|
| Material | Mild Steel |
| Color Printing | Yes |
| Maximum Cutting Speed (mm/sec) | > 1000 mm/sec |
| Automation Grade | Automatic |
| Weight (Kilogram) | 6 ton |
| Thickness (Millimetre) | 100mm |
| Packaging Type | Wooden packaging |
| Material Width | 10 to 100 inch |
| Motor Power (kw) | 5 H.P. |
| Minimum Order Quantity | 1 Unit |
| No. Of Colours | 1 To 8 |
| Web Width | 500mm To 2050mm (20 To 80) |
| Unwind/Rewind Reel Dia | 1000mm (40) |
| Unwind/Rewind Core ID | 76mm And 152mm |
| Range Of Cylinder Circumference | 250mm – 1270mm (10 To 50) |
| Printing Speed | 80 Mtr Per Min (variable As Per No. Of Colours Of Machine) |
| Power Requirement | 4 Colour Machine: 16 Kw / 6 Colour Machine: 20 Kw / 8 Colour Machine: 24 Kw |
| Floor Space Length | Variable As Per The Machine |
| Material That Can Be Printed | HM, LD, Non woven, LLDPE, Paper Polyester Film, Foil Etc |
| Available Models | 2, 4, 6, And 8 Colours |
| Web Width | 500mm To 2050m |
| Reverse Printing Arrangement | Yes |
| Top Drying Hood System And Intermediate Drying Between Units | Yes |
