High-Speed Printing
Machine speed up to 250 MPM for faster production.
Accurate Registration
Servo-driven control ensures precise print alignment.
Advanced Automation
Easy controls with reduced maintenance and wastage.
Flexible Packaging Printing Solution

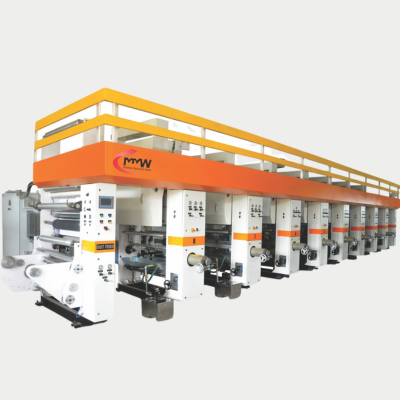

Shaftless Rotogravure Printing Machine
The Shaftless Rotogravure Printing Machine represents advanced flexible packaging printing technology with independent servo-driven units for high precision, faster setup, reduced wastage, and superior print quality. The shaftless structure improves efficiency, reliability, and operational performance.
| Machine Type | Shaftless Rotogravure Printing Machine |
|---|---|
| Web Width | 800 mm, 1000 mm, 1300 mm, 1500 mm |
| Min. Web Width | 400 mm, 500 mm, 650 mm, 750 mm |
| Machine Speed | 250 MPM |
| Drive System | 5 Drive / 7 Drive System |
| Registration Control | Vertical / Horizontal Motorised |
| Max Cylinder Circumference | 400–900 mm / 1200 mm Optional |
| Unwinder & Rewinder | 800 mm Shaftless Type |
| Printable Materials | Polyester, BOPP, Paper, LDPE, PVC |
| Included Features | Web Video, ARC, Ink Circulation Pump |
| Optional Features | Auto Turret System, Turn Bar System, Cylinder Trolley |
| OPP Range | 12–25 Microns |
| BOPP Range | 15–50 Microns |
| PET Range | 8–50 Microns |
| LDPE / HDPE Range | 40–60 Microns |
| Main Advantages | High Efficiency, Low Operating Cost, High Productivity, Easy Operation |
