Watch Machine Working Video
Review the working process, build quality, and production flow before sending your requirement.
Watch Video
Sharp Printing
Delivers clean and consistent print impressions.
Accurate Registration
Maintains reliable print alignment during production.
Reliable Operation
Built for smooth industrial performance.
Industrial Flexo Printing Machine Solution

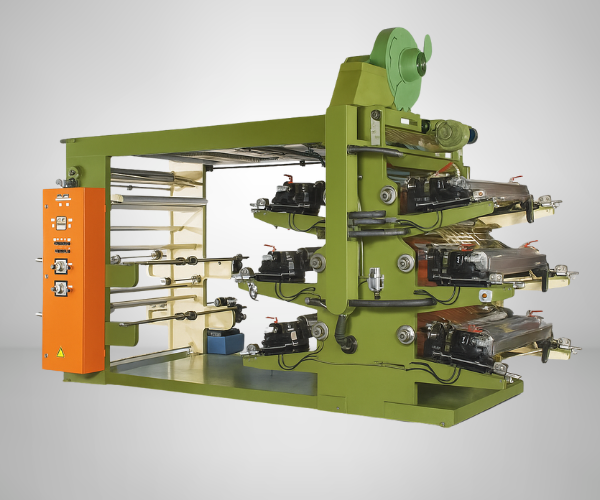

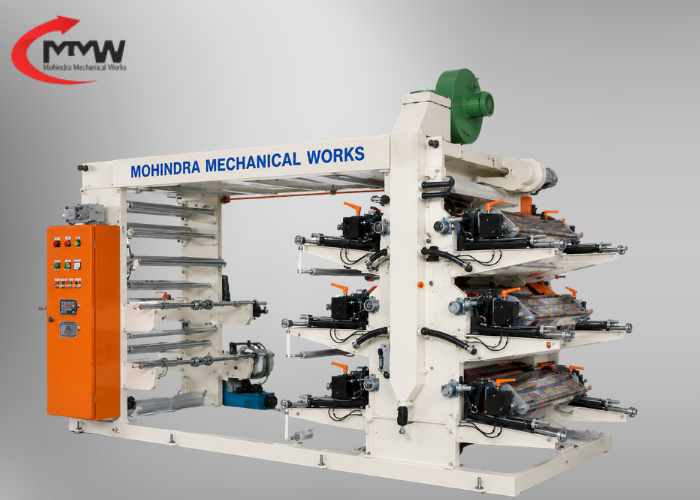

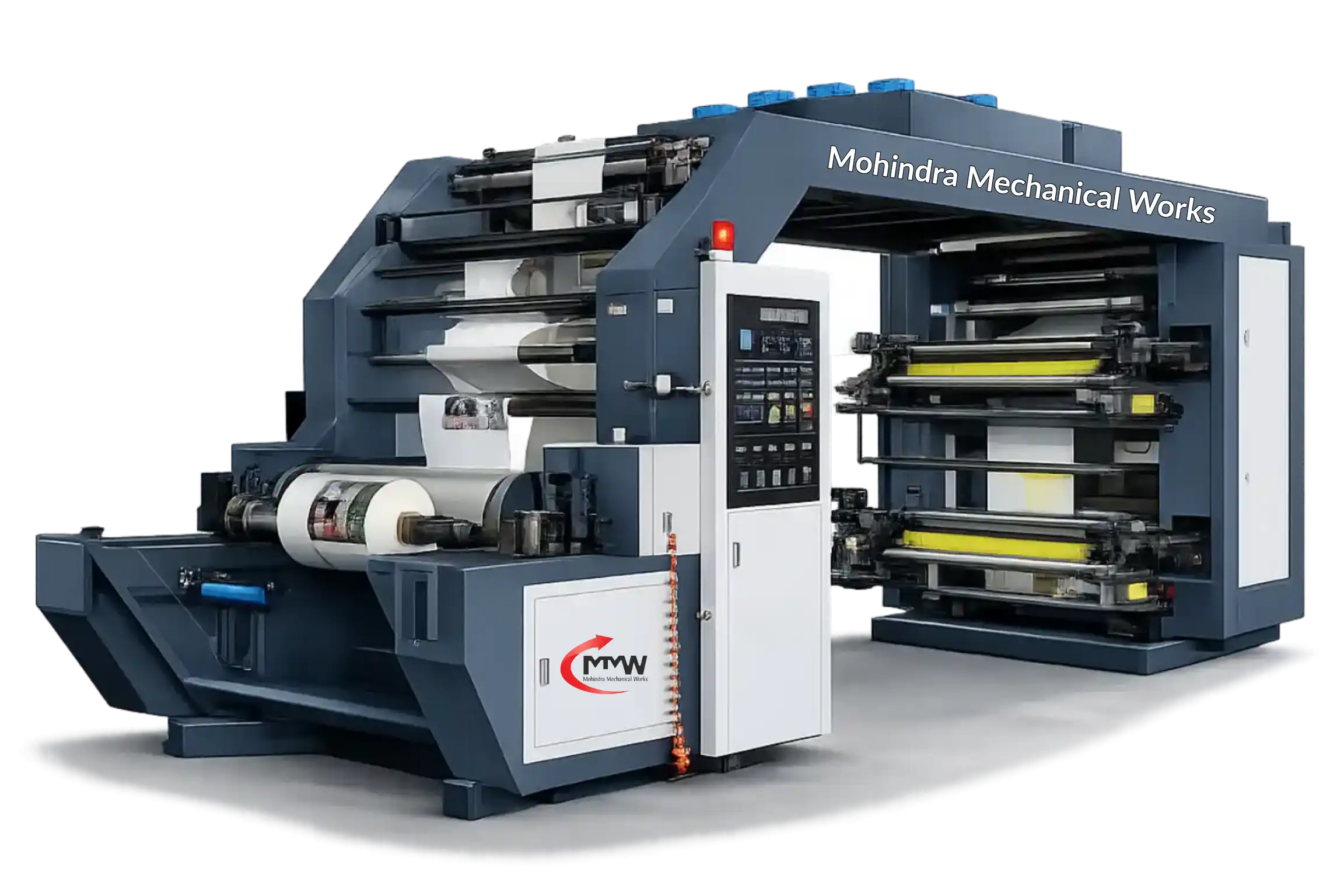

Woven Printing Machine
The Woven Printing Machine is designed for sharp, vibrant, and consistent flexographic printing on packaging materials. It supports smooth operation, reliable registration, and efficient production for paper, film, woven, and non-woven applications.
| Printing Speed | 5000 IPH |
|---|---|
| Capacity | 80 M/Min |
| Machine Type | Automatic |
| Color Printing | Color Printing |
| Brand | Mohindra |
| Usage | Industrial |
| Minimum Order Quantity | 1 Piece |
| No. Of Colours | 1 To 8 |
| Web Width | 500 mm To 2050 mm (20 To 80) |
| Unwind/Rewind Reel Dia | 1000 mm (40) |
| Unwind/Rewind Core ID | 76 mm And 152 mm |
| Range Of Cylinder Circumference | 250 mm – 1270 mm (10 To 50) |
| Printing Speed | 80 Mtr Per Min (variable As Per No. Of Colours Of Machine) |
| Power Requirement | 4 Colour Machine: 16 Kw / 6 Colour Machine: 20 Kw / 8 Colour Machine: 24 Kw |
| Floor Space Length | Variable As Per The Machine |
| Material That Can Be Printed | Hm, Ld, Nonwoven, Lldpe, Paper Polyester Film, Foil Etc |
| Available Models | 2, 4, 6, and 8 Colours |
| Web Width | 500mm To 2050 mm |
