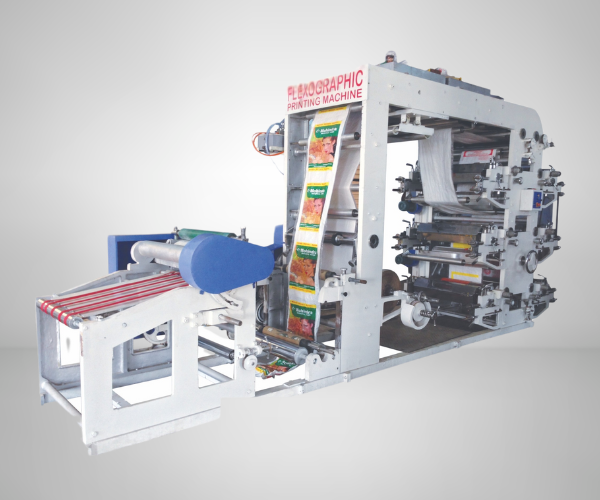

Flexographic Printing Machine

Web Width	500MM TO 2050MM (20" TO 80")
No. of Colours	1 TO 8
Unwind/Rewind Reel Dia	1000MM (40")
Unwind/Rewind Core ID	76MM AND 152MM
Range of Cylinder Circumference	250MM - 1270MM (10" TO 50")
Printing Speed	80 MTR PER MIN (VARIABLE AS PER NO. OF COLOURS OF MACHINE)
Power Requirement	4 COLOUR MACHINE: 16 KW 6 COLOUR MACHINE: 20 KW 8 COLOUR MACHINE: 24 KW
Floor Space Length	VARIABLE AS PER THE MACHINE

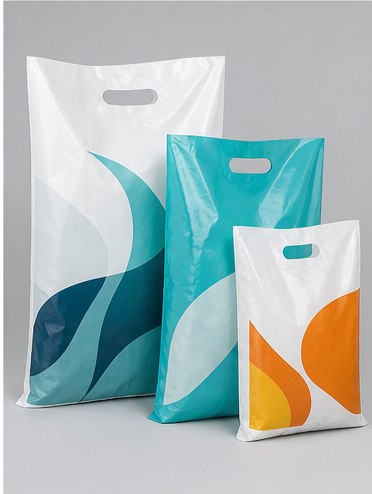

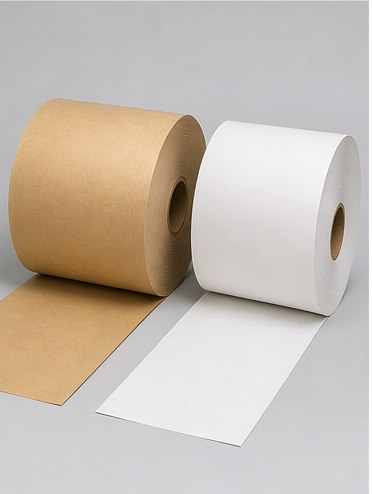

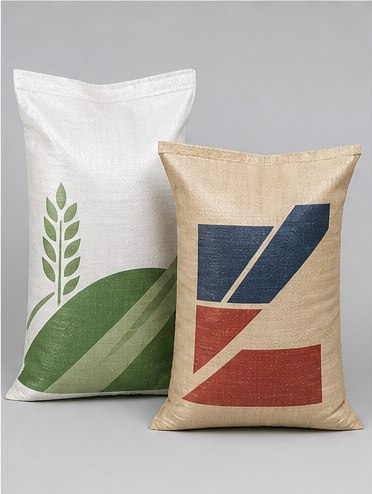

Material That Can Be Printed: HM, LD, NONWOVEN, LLDPE, HDPE, PAPER, POLYESTER FILM, FOIL ETC
Available Models: 2, 4, 6, AND 8 COLOURS
Web Width: 20" TO 80" (500MM TO 2050MM)
Reverse Printing Arrangement: Yes
Top Drying Hood System: Yes, with intermediate drying between units
Body: Heavy duty cast iron body (vibration free)
Guide Rolls: Low friction dynamically balanced
Web Roller: Aluminium rollers & sheet rollers
Additional Features: Electric crane system, web aligner system, tension control system, online slitting provision, winding & unwinding air shaft, surface rewinding

Mohindra Mechanical Works
