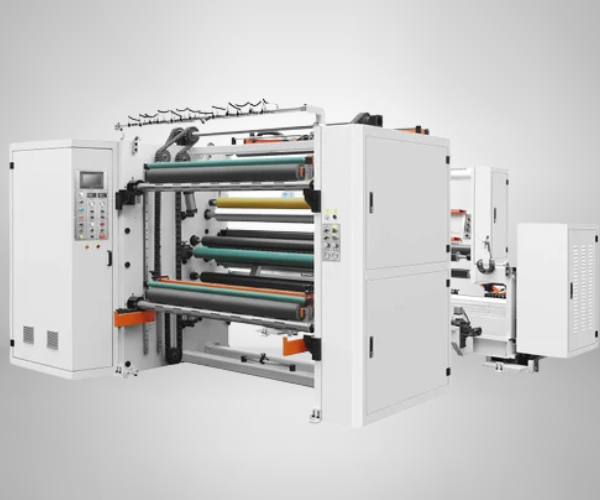

High-Speed Cantilever Slitting Machine

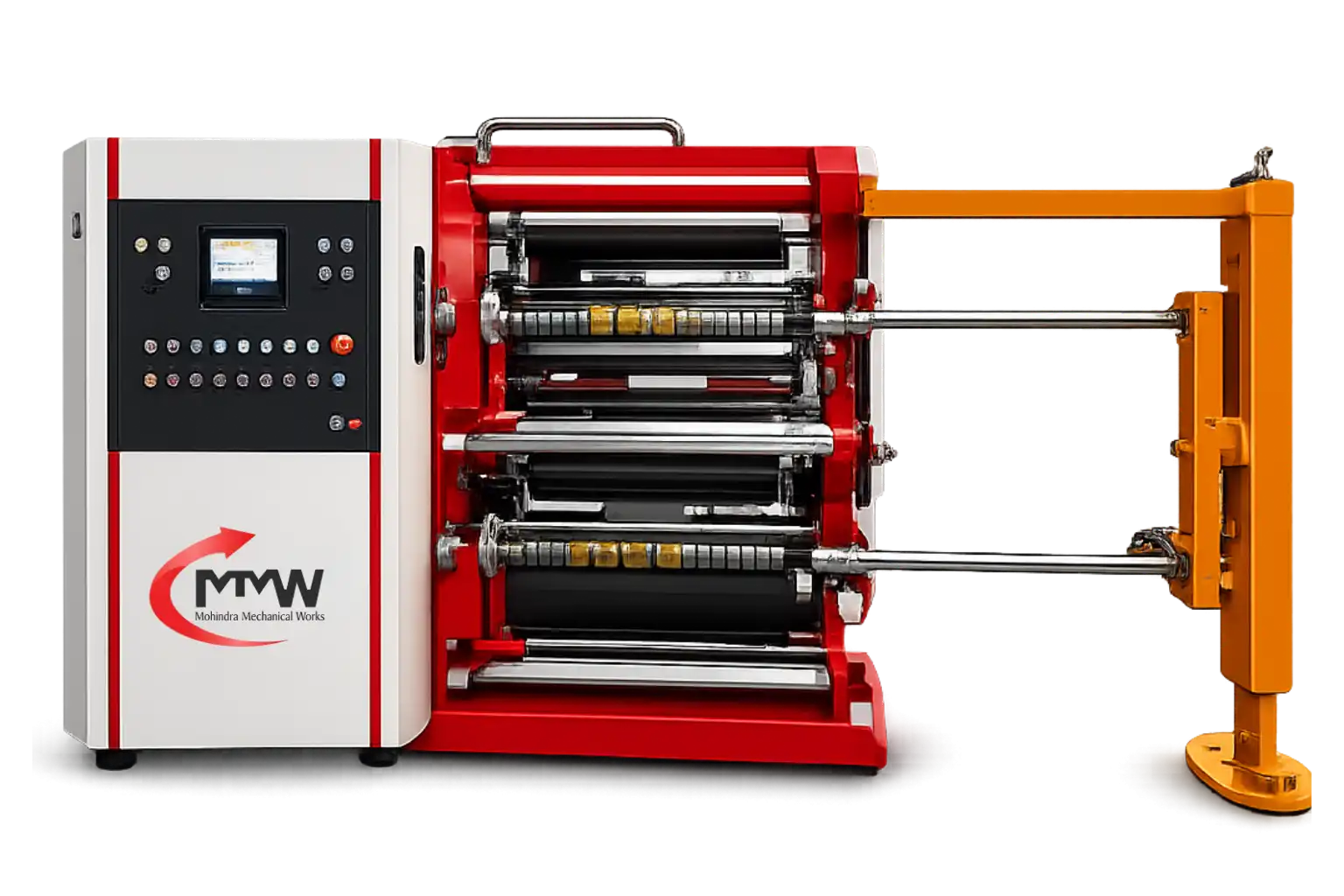

High Speed Cantilever Slitting Machine

Machine	High Speed Cantilever Slitting Machine
Type of Slitting	Razor / Rotary Cutter
Machine Height	Four Feet
Machine Speed	400 MPM to 600 MPM
Winding Unit	Cantilever
Nip Unit	A.C Main Drive
Winding Drive	(2 Station) Synchronized to Main Drive
Unwind Drive	Synchronized to Main Drive
Type of Unwinder	Shaftless
Type of Winder	Duplex
Lay on Roller Function	Pneumatic
Nip Roller Loading	Pneumatic
Web Guiding	Auto
Machine Colour	Siemens Grey & Tata Blue

Shaftless unwinder.
Maximum outer reel dia 800 to 1000 mm.
Motor 0.7 K.W for operation of shaftless unwinder moving horizontally on linear guides.
Unwind tension controlled automatically through load cell based pneumatic brake tension controller. Precision tension accuracy of ±0.1 KGM.
2 Nos mild solid steel plates all sided shaped mounted on linear guiding system.
4 caliper pneumatic brake made of RE Italy.
Unwinder trolley will tilt up and down with the help of hydraulic cylinder.

Type of Rewinder: Duplex Cantilever.
2 Nos. mild solid steel plates all sided shaped for length support.
Maximum outer reel dia 500 mm to 800 mm.
Two 50 mm mechanical alloy steel bar harden shaft.
Rewinder tension controlled automatically through load cell / dia sensor based 7.5 K.W digital drive tension controller for precision tension accuracy.
Shaft filled with quick locks at 1100 mm with distance pieces.
Shaft mounted on bearings with length support.
Arms slided on linear guide to support winding shaft hydraulically operated with solo cylinder.
Fixed off loader provided with moving arms.
