Rotogravure Printing Machine for Film & Paper

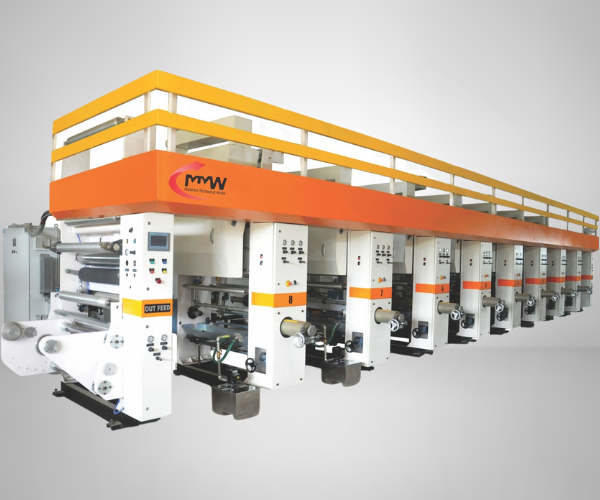

Rotogravure Printing Machinery

Printing Material	Film, paper, aluminum foil, pet, bopp, pvc film, polyester, bolyster, poly, metalized film etc
Number of Colors	1 - 8 colors
Web Width	20 to 80
Web Roller	Aluminum rollers or steel rollers
Machine Speed	Up to 250 m/min
Unwind Type	Single fixed shaft type or 2 shaft turret type unwind
Reel Diameter	1000 mm (approx)
Unwind Shaft	Air shaft, tapper cone with solid shaft or shaft ness
Tension Controller	Manually & auto registration control system (A.C. Motor)
In Feed Unit	Synchronized control (A.C. Motor)

Frame: Cast iron
Cylinder: Diameter - 100 mm to 300 mm
Chucking: Shaft with taper cone
Drying System: Single chamber impingement slot dryer (electric, thermic oil, Hot Air generator, etc.)
Doctor Blade: Manual & numetic doctor blades
Ink System: S. S. ink tray
Registration System: Manually & auto registration control system
Out Feed Unit: Synchronized control (A.C. Motor)

This rotogravure printing machine is suitable for roller to Roller Printing Plastic Film, Aluminum Foil, BOPP, PET, PVC, PVC Foil, PE, CPP and Paper etc. It is widely use in high quality packaging material printing.
